All-in-one Design
High integration with LFP battery, BMS, PCS and EMS as well as FSS.
Smart O&M
Easy online O&M service with NHCloud both on Cloud platform and APP. Support 7*24h cloud-edge monitoring.
Long Cycle Life
Over 8,000 times cycle life, excellent performance of battery system.
Liquid Cooling
Liquid-cooled system is designed with low energy consumption. Lower temperature difference of the cells and higher cell consistency.
Flexible Extension
Modular design which is easy to extend parallel. Support maximum 12 units connected in parallel for on-grid and maximum 6 units for off-grid.
ULTIMATE SAFETY
Cabinet and pack-level fire suppression system with aerosol (water suppression is reserved). Support temperature, smoke and gas multiple detection. Passed UL9540A, NFPA 69, IEC62933 certification.

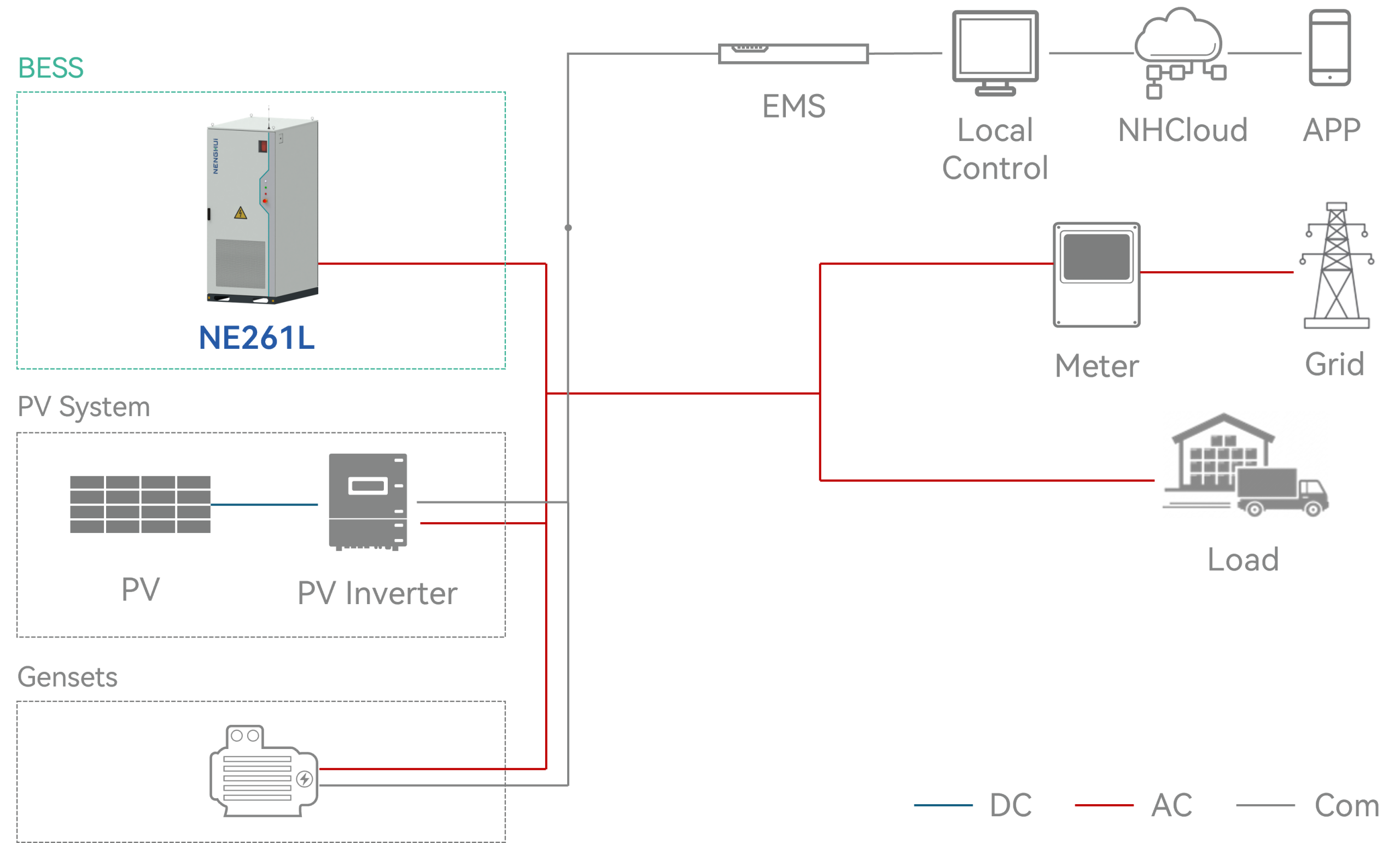

USAGE SCENARIO
Peak Shaving, Backup Power, Solar-Storage Integration, Demand Response, Microgrid Operation
TECHNICAL SPECIFICATION
| Rated Power | 125kW |
| Max. Power | 137kW (1 min) |
| THDi | ≤3% |
| DC Ratio | <0.5%lpn |
| Nominal Voltage | 400Vac/3P+N+PE |
| Power Factor | -1lagging~1leading |
| Nominal Frequency | 50Hz/60Hz |
| Max. System Efficiency | 90% |
| Charge/Discharge Rate | 0.5P |
| DoD | 95% (25±2℃) |
| SOC Accuracy | 3% |
| Cycle Life | 8.000 times |
| Switching Time | <100ms |
| Connectivity | Ethernet /RS485 |
| Ingress Rating | IP55 |
| Operating Temperature | -30°C~50°C |
| Humidity | 5~95%RH, non-condensing |
| Noise | ≤75dB |
| Altitude | ≤2,000m (derating above 2,000m) |
| Fire Safety | Aerosol |
| Dimensions (W*D*H) | 1,400*1,000*2,350(mm) |
| Weight | 2.7t |
| Compliance | UN38.3, IEC62477, IEC61000, IEC62619, IEC63056, IEC62933, UL9540A, EN50549 |
