Ultimate Safety
Cabinet and pack-level fire suppression system with aerosol. Support temperature, smoke and gas multiple detection. Passed UL9540A, NFPA 69, IEC62933 certification.
Liquid Cooling
Liquid-cooled system is designed with low energy consumption. Lower temperature difference of the cells and higher cell consistency.
Long Service Life
Support maximum 10-year warranty. Excellent performance of battery system in service life
Smart O&M
Easy online O&M service with NHCloud both on Cloud platform and APP. Support 7*24h cloud-edge monitoring.

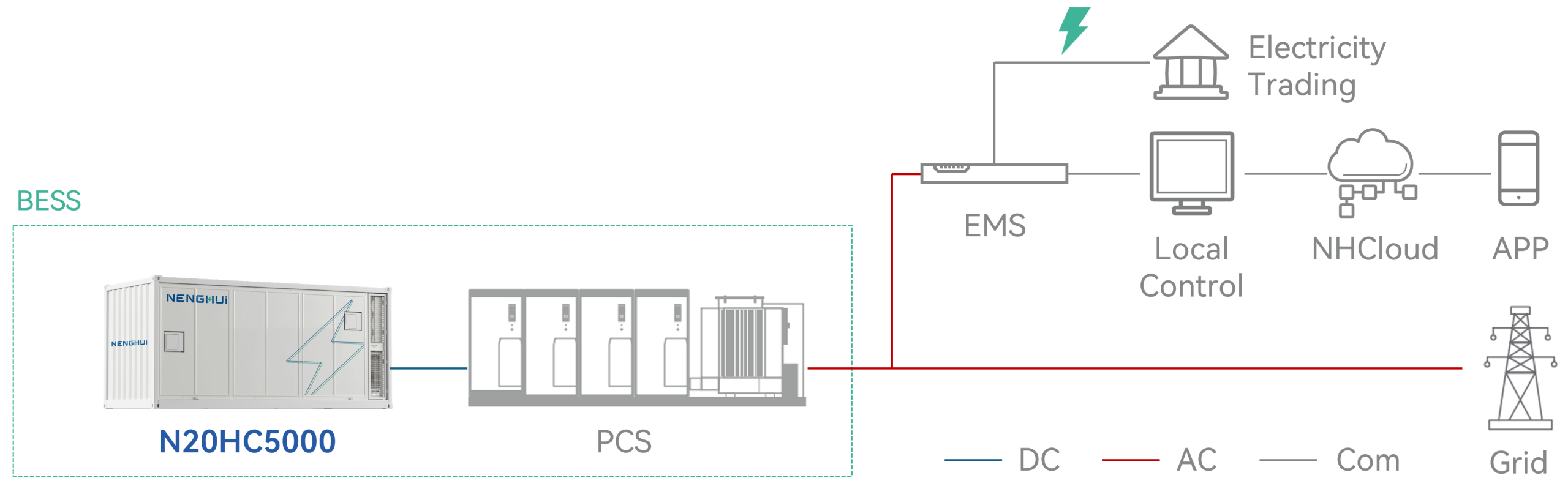

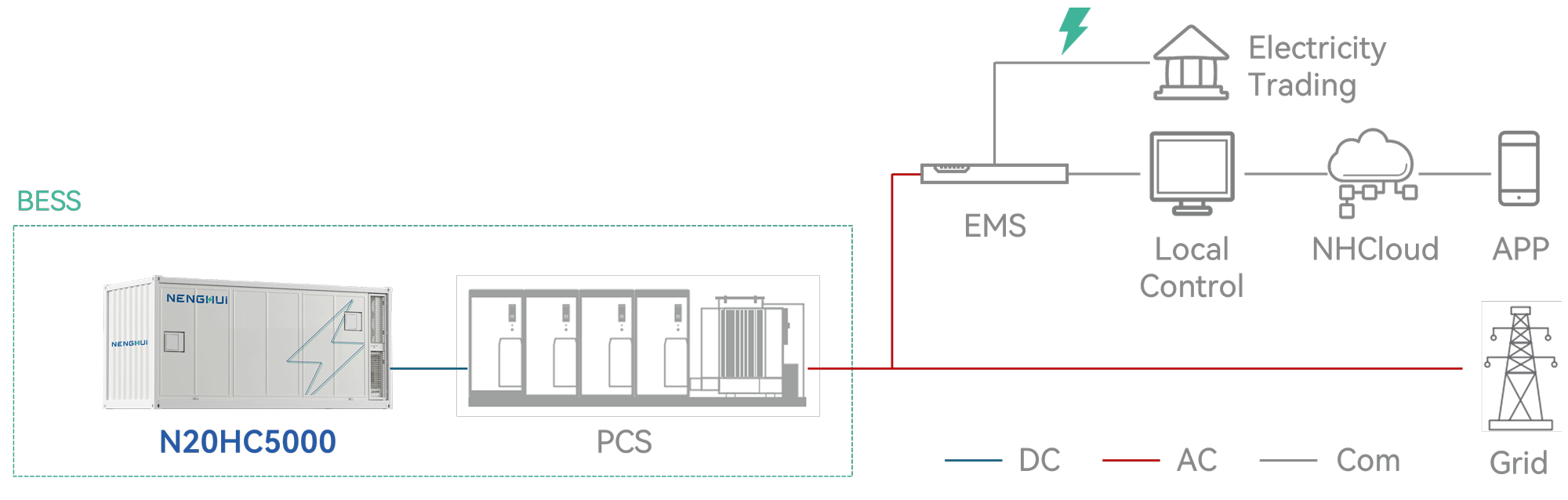

USAGE SCENARIO
Peak Shifting, Peak Shaving, Demand Response DAM & ASM (aFRR, mFRR, etc） PV Integration Back-up Power
TECHNICAL SPECIFICATION
| Combination Model | 1P416S |
| Standard charge-discharge rate | ≤0.5C |
| Rated energy | 418kWh |
| Nominal voltage | 1331.2V |
| Charge and discharge efficiency | ≥92%@25±3℃, 0.5C(excluding auxiliary power consumption) |
| Thermal management mode | Liquid cooling |
| Communication mode | CAN |
| Battery charge operating temperature | 0℃ ~ 55℃ |
| Battery discharge operating temperature | -20℃ ~ 55℃ |
| Storage temperature | -10℃ ~ 50℃ |
| Storage humidity | 0 ~ 95% (no-condensing) |
| Altitude | ≤3000m (>2000m derating) |
| Combination Model | 12P416S |
| Standard charge-discharge rate | ≤0.5C |
| Rated energy | 5015.96kWh |
| Nominal voltage | 1331.2V |
| Charge and discharge efficiency | ≥92%@25±3℃, 0.5C(excluding auxiliary power consumption) |
| Thermal management mode | Liquid cooling |
| Communication mode | CAN/RS485/Ethernet |
| IP rating | IP55 |
| Battery charge operating temperature | -30℃ ~ 55℃ |
| Battery discharge operating temperature | -30℃ ~ 55℃ |
| Storage temperature | -10℃ ~ 50℃ |
| Dimensions (W*D*H) | 6058*2438*2896mm |
| Weight | <43T |
| Storage humidity | 0 ~ 95% (no-condensing) |
| Altitude | ≤3000m (>2000m derating) |
| Compliance | IEC 62477-1, IEC 61000-6-2/4, IEC62619, UN3536 |
